How To Fix Signal Problems On A Fpv Camera
Your FPV system is the single nearly important part of your quad. Information technology provides y'all with a alive video feed to tell you where the aircraft is heading, and allows us to perform listen-bending acrobatic maneuvers. If a single component in your FPV system fails during flight, then the quad goes down, all because of one component. A bad FPV video signal, riddled with static can render a quad useless, catastrophe a fun day of FPV. In this guide, the topic of fixing a bad FPV video feed will exist discussed and diagnosed.
This article was submitted through the GetFPV Customs Program by Lawrence Ro.
Disclaimer: This article was written solely by a fellow member of the FPV Community. Views and advice in this commodity are that of the author and does non reflect the opinion or views of GetFPV.
Mutual Causes of Bad FPV Video
The about common causes for a bad FPV video feed are caused by electrical and/or mechanical disruptions in the quad. This can vary from electrical racket coming from the ESCs, to vibrations from a aptitude prop. Also, objects that are in the way of the line of sight between your goggles and video transmitter can cause multi-pathing, resulting in a low-quality video point.
There are two principal types of FPV static. In that location is white line static, and black line static. White line static is electrical interference, whereas black line static is usually due to a lack of power going to your camera and/or video transmitter.
Electric Noise
The ESCs in your quad generate a lot of electrical noise. They are constantly pumping out high electric current to the motors at high frequencies. Not surprisingly, this has detrimental effects to the FPV organization. A pocket-sized interference may cause static to appear, and in some cases, can block out the whole signal.
Change Power Source
One solution to this trouble is to ability your FPV camera directly from your video transmitter. Many video transmitters these days have built in filtering for cameras, which gives the camera a prissy, clean, filtered video. The transmitter itself may be powered directly from the LiPo bombardment, providing that information technology can handle the voltage, only this is not recommended, as excessive dissonance during loftier motor utilise can nevertheless brand its way into the video feed. Instead, power the transmitter off a voltage pad on your PDB.
Depression ESR Capacitor
Another solution to electrical interference in your FPV video is to add a low ESR capacitor to your power setup. Why a low ESR capacitor? Because they are really practiced at arresting voltage spikes, which cause electrical interference. Basically, by calculation a capacitor, it volition not only significantly make clean up the video feed, only information technology will also protect the more sensitive electronics, such as the flight controller from voltage spikes cause by the ESCs and motors. Too, they are cheap and constructive style to eliminate electrical noise. For more information pertaining to capacitors in FPV systems, check out this article: https://oscarliang.com/capacitors-mini-quad/
Look for a large capacitor with a sufficient voltage rating. An example of a common one is a 1000uF 25-35V low ESR capacitor. When installing a low ESR capacitor, you want to solder it every bit close as possible to the bombardment. A great video explaining more than in depth nigh capacitor placement and installation can be constitute here: https://www.youtube.com/spotter?v=88wEYTp3i3g
Have a Mutual Basis
If possible, connect your FPV camera and FPV transmitter to the aforementioned ground pad on your PDB. The reason for this is considering not all ground pins are the same in a mini quad. Different pads on the PDB may have dissimilar thicknesses, lengths, or shape. These bear on the pad's resistance, capacitance, and inductance, all of which can cause voltage and current differences throughout your power arrangement. For best do, connect the more critical part, the FPV arrangement to a mutual ground pad. If this is not possible, try to connect them as shut to each other as possible.
Keep ESCs Far Abroad
ESCs operate at loftier voltages and frequencies, carrying current and signals through wires in our quads. These wires can generate EMFs, or electromagnetic fields, which causes interference in the FPV video feed. Try to proceed your ESCs as far abroad every bit possible from your flight controller and FPV equipment.
LC Filter and FPV BEC
Nonetheless another solution to eliminating electric noise in your quad is to add together an LC filter and/or an FPV BEC (bombardment elimination circuit). These two solutions are relatively outdated and not recommended anymore, only adding an LC filter to the ability system can assistance a scrap. A better manner t counteract interference would be to add together a depression ESR capacitor. An FPV BEC basically does the same thing equally powering your FPV organisation from a filtered pad on your PDB.
Video Transmitter Overheating

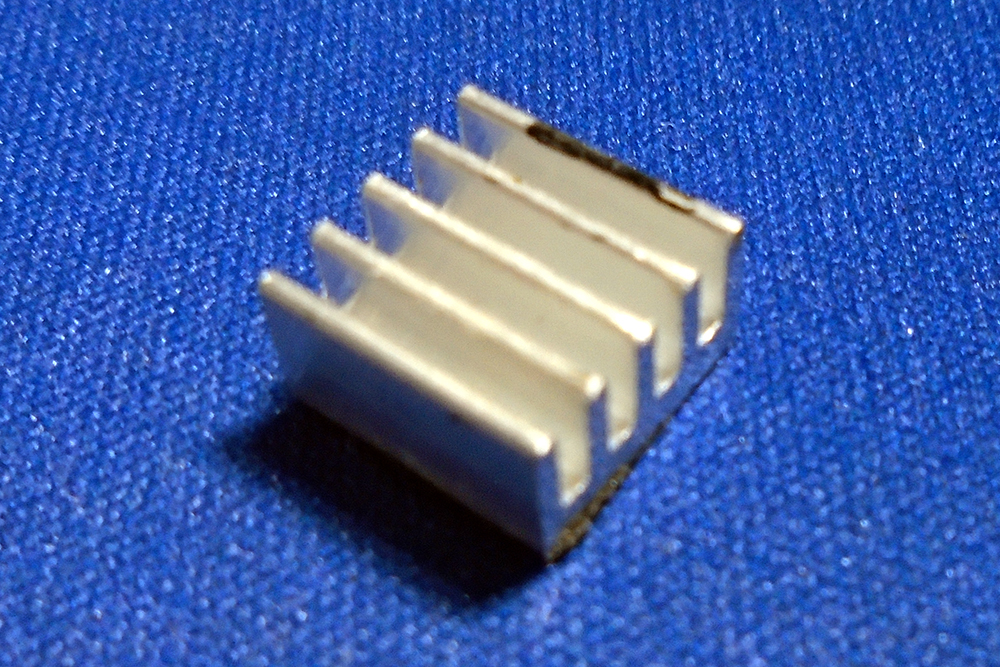

An overheating video transmitter is a sure way to wreck your FPV system. Since nosotros like to transmit five.8Ghz signals at 200mw or more for long periods of time day in and day out, the small video transmitters have to work pretty difficult to keep up. When they become too hot, the result is poor functioning, and sometimes, a burnout. If possible, try to mount the video transmitter in a well-ventilated surface area of your quad. Also, consider calculation a heat sink to the transmitter to reduce the amount of heat buildup.
Mechanical Issues
Vibrations in your quad frame can disrupt the operation of your FPV equipment. Besides, information technology tin crusade "jello" in your video. Jello is when the paradigm in your FPV gets slightly distorted and shifted because of the way many cameras process their prototype. Basically, vibrations = bad.
Bank check Connectors
Bank check your SMA antenna connection on your FPV transmitter. If it is even slightly loose, or wiggles a tiny bit, then tighten information technology or become a new antenna. The vibrations in the quad during flying interfere with the connection of the antenna, which decreases range, and may even put your video transmitter at run a risk of burning out. Likewise, make certain that your camera cable, video transmitter cable, and wires are secured.
If the video feed is black, simply you can nonetheless see the OSD, then its your photographic camera that needs to be diagnosed. Yet, if you lot can see the paradigm and the OSD, but take static lines, then it'southward the video transmitter.
Uneven Props
This is a huge thing in the stability of your quad. No amount of PID tuning and new Betaflight releases will prepare your vibration problems if you have a bent prop. That i aptitude prop tin cause your motors to overheat, can article of clothing out your motor bearings faster, cause jello, and in full general, wreak havoc on your quad. Simply curve the prop back to where it was before, or supervene upon information technology. One trick to this is to look at your prop on the motor to the side. Then rotate and bend the offending blade(s) dorsum to where they should be, usually parallel to the ground. And then, as a final check, quickly spin your motor and check that the props "blur" into an even line.
Bank check PIDs
Some other trouble which may induce vibrations to your quad is a bad PID melody. This is not really an outcome these days, because our flight control software is so good out of the box, that this rarely needs to be addressed. Notwithstanding, in some cases, the PID tune of your quad may need to exist adjusted to fix oscillations in flight. Check out this video past Drone Mesh, going mainly over how PIDs can bear on FPV video: https://www.youtube.com/watch?5=O4S9xoaEOec
Be certain to check the temperature of you lot motors when PID tuning and filter tuning. Betaflight specifically says: "It is important to verify motor temperatures during first flights. The higher the filter value gets the amend it may fly, but you too will get more than racket into the motors. Default value of 100Hz is optimal, simply for noisier setups y'all can effort lowering D-term filter to 50Hz and perhaps likewise the gyro filter."
Check Antennas
If your antenna is not properly mounted, or your antennas in you goggles aren't correctly configured, yous may feel bad FPV video. For example, brand certain that you are using RHCP/LHCP antennas on both your video transmitter and receiver. They both need the same type of antenna in order to operate to their best extent. If you are using a cloverleaf and patch antenna on your goggles, then make certain to point the patch antenna in the direction of the quad to go the best reception.
If tilting your caput in the direction of flying doesn't seem appealing to you, then consider putting two cloverleaf antennas on your diversity setup. Joshua Bardwell made a video comparing a cloverleaf and patch to a double cloverleaf receiver setup here: https://www.youtube.com/watch?v=uoIQgW8iwV8
Determination
Overall, diagnosing a bad FPV video feed can be a fourth dimension consuming and frustrating task. However, it is an extremely rewarding process that can give valuable experience in diagnosing your quad's FPV system. The best way to foreclose failure is to purchase quality parts. Non the cheap stuff from China, but the solid performing parts from reputable suppliers.
